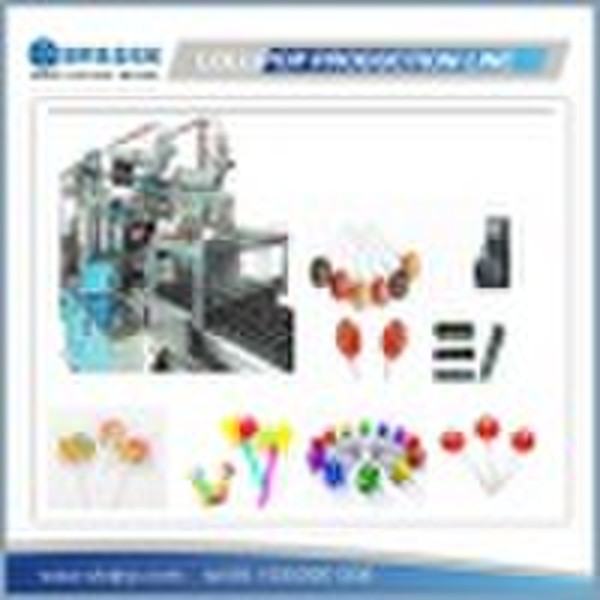

QHB depositing type lollipop production line

QHB depositing type lollipop production line isan advanced equipment to produce lollipop. The operation is controlled by a PLC/program for the vacuum cooking, feeding, and depositing. It can be in-line injection, dosing and pre-mixing for the proportional addition of liquid colors, flavors, and acids. The line is composed of cookers, storage tank, micro-film cooker, depositing, moulds and industrial cooling tunnel. It can produce two color striped, two color layers, one color and central-filled lollipop.The line is a full-automatic plant equipped with an automatic stick insertion system. Moreover, just change the moulds ,tt is available to produce both hard candy and lollipop on the same depositing line. The strongpoint of the line is as following: * PLC /computer process control available; * An LED touch panel for easy operating; * The production capacity from 150 kgs/h to 450kgs/h; * Optional (mass) flowing controlled by Frequency inverters ; * In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid(milk); Dosing pumps for the automatic injection of colors, flavors and acids; * One set of extra chocolate paste injection system for making chocolate-central candies; "two/three-color striped depositing","two /threecolor double layers depositing", "central filling", "clear" hard candies and etc. can be made. * Moulds can be made according to the candies samples provided by the customer."\ Parameter: MODEL QH150 QH300 QH450 QH600 Capacity(kg/hr) 150 300 450 600 Max candy weight 26g 26g 26g 26g Lollipop Diameter Flat:18-28mm Ball:Max 25mm Depositing speed 55-65n/min 55-65n/min 55-65n/min 55-65n/min Stick Specification 60-100mm 60-100mm 60-100mm 60-100mm Compressed air requirement 0.2m³/min, 0.4-0.6Mpa 0.2m³/min, 0.4-0.6Mpa 0.2m³/min, 0.4-0.6Mpa 0.2m³/min ,0.4-0.6Mpa Working condition Temp:20-25 Humidity:55% Temp:20-25 Humidity:55% Temp:20-25 Humidity:55% Temp:20-25 Humidity:55% Total Power 18kw/380V 27kw/380V 34kw/380V 38kw/380V Total Length 17m 19m 19m 22m Total Weight 3500kg 4000kg 4500kg 5000kg Forpriceenquiry,pleasecontact: Aileen(M:0086-15800961006) ExportDepartment ShanghaiQinhuiFoodstuffMachineCo.,Ltd. Address:No.6157PuweiRd,Fengxian,Shanghai,China201417 Tel:0086-21-57450859(directline)0086-21-57459080(extensionno:608)Fax:0086-21-57450421
